PA X 10-10 230 AC GE

Markalar Pfannenberg
Ürün Kodu: 23361103000

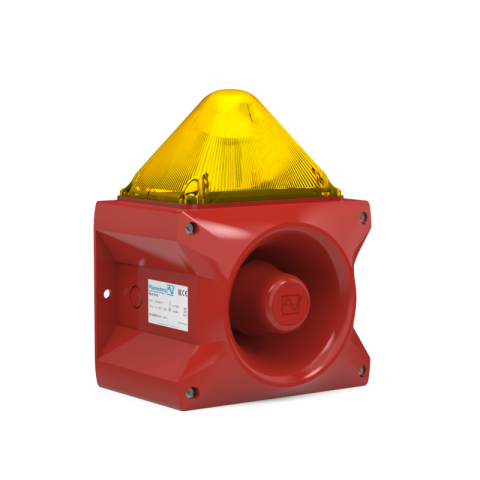

PATROL - yeni nesil siren / yanıp sönen ışık kombinasyonları. Üç boyutlu yenilik;

  • kasa; yanlış kurulum neredeyse imkansızdır
  • kolay; önemli ölçüde daha kısa montaj ve kurulum süreleri
  • ekonomik; son derece yüksek verimlilik ve akustik engellerin iyi nüfuz etmesi gereken siren sayısını önemli ölçüde azaltır
  • önceden bağlanmış siren ve ışık fabrika çıkışı
  • sesli ve görsel kapsama alanının en iyi eşleşmesini desteklemek için çeşitli ışık yoğunlukları mevcuttur

Pfannenberg 3D Kapsama Alanı

PA X-10-10 - Görsel kapsama alanı boyutu (Metre cinsinden A x B x C)

BELİRTMEKUYARIUYARMAK
 kırmızı
 Sarı
 yeşil
 kehribar
 açık
Diğer değerleri görüntülemek için SEÇİMİ TEMİZLE alanını tıklayın. Şimdi istediğiniz lens renklerini veya alarm seviyelerini seçin.

Gösterilen şekiller temel olarak hızlı bir yönlendirme içindir. Bireysel ve kesin bir yorum için lütfen PFANNENBERG BOYUTLANDIRMA YAZILIMINI (PSS) KULLANIN .

PA X-10-15 - Görsel kapsama alanı boyutu (Metre cinsinden A x B x C)

INDICATEWARNINGALERT
 red
 yellow
 amber
 blue
 clear
To display other values click the CLEAR SELECTION field. Now select the desired lens colors or alarm levels.

The figures shown are mainly for a quick orientation. For an individual and precise interpretation please use  PFANNENBERG SIZING SOFTWARE (PSS).

Technical data

Electrical dataPA X 10-10 / 10 Joules
Rated voltage230 V AC115 V AC24 V DC
Rated frequency50/60 Hz50/60 Hz
Operating range187–255 V90–135 V18–30 V
Nominal current consumption160–215 mA260–345 mA665–935 mA
Electrical dataPA X 10-15 / 15 Joules
Rated voltage230 V AC115 V AC24 V DC
Rated frequency50/60 Hz50/60 Hz
Operating range187–255 V90–135 V18–30 V
Nominal current consumption210–265 mA360–445 mA765–1035 mA

Further technical information can be found in the Download section on this page.

Downloads

DescriptionLanguageTypeSizeDownload

Product Sheet

  • English
PDF4.3 MB DOWNLOAD

Operating manual

  • German
  •
  • English
  •
  • French
  •
  • Russian
  • Italian
PDF4.1 MB DOWNLOAD

3D-Model (IGS)

  • English
ZIP730 KB DOWNLOAD

3D-Model (SAT)

  • English
ZIP920 KB DOWNLOAD

3D-Model (STEP)

  • English
ZIP640 KB DOWNLOAD

MED Certificate

  • English
PDF150 KB DOWNLOAD

EC Declaration of Conformity (MED)

  • English
PDF410 KB DOWNLOAD

DNV/GL Type Approval

  • English
PDF78 KB DOWNLOAD

UL Certificate

  • English
PDF260 KB DOWNLOAD

Declaration Of Conformity

  • English
  •
  • German
PDF55 KB DOWNLOAD

EAC Certificate

  • Russian
PDF1.3 MB DOWNLOAD

Ordering details

Ordering detailshousing redPA X 10-10
VersionRated voltage230 V AC115 V AC24 V DC
yellow lensArticle number233611030002336115300023361803000
amber lensArticle number233611040002336115400023361804000
red lensArticle number233611050002336115500023361805000
Ordering detailshousing greyPA X 10-10
VersionRated voltage230 V AC115 V AC24 V DC
yellow lensArticle number233611030552336115305523361803055
amber lensArticle number233611040552336115405523361804055
red lensArticle number233611050552336115505523361805055

To make the order process easy for you and to ensure a secure delivery, please see the information on the final article numbers.

Artikelnummern für Produkte mit anderen Nennspannungen und Haubenfarben auf Anfrage.

Options / Accessories

Video

Signaling technology – PATROL: new sounder generation

Audio Samples

DescriptionLanguageTypeSizeDownload

Sawtooth

DIN tone 33404-3 Germany (emergency signal) PFEER PTAP

    WAV800 KB DOWNLOAD

    Slow whoop

    fire alarm UK BS5839-1

      WAV890 KB DOWNLOAD

      Interrupted tone

      fast

        WAV910 KB DOWNLOAD

        Interrupted tone

          WAV930 KB DOWNLOAD

          Slow whoop

          Netherlands NEN 2575 (evacuation alarm)

            WAV890 KB DOWNLOAD

            Slow whoop

            Australian AS2220 (evacuation alarm)

              WAV1.1 MB DOWNLOAD

              Slow whoop

              NFPA

                WAV980 KB DOWNLOAD

                Pulsating tone

                Australian alert AS1670, ISO 8201

                  WAV710 KB DOWNLOAD

                  Siren

                    WAV1.4 MB DOWNLOAD

                    Siren

                      WAV1.3 MB DOWNLOAD

                      Siren

                        WAV1.3 MB DOWNLOAD

                        Siren

                        industrial alarm Germany

                          WAV5.3 MB DOWNLOAD

                          Sweeping

                            WAV980 KB DOWNLOAD

                            Sweeping

                            fast

                              WAV1.0 MB DOWNLOAD

                              Sweeping

                                WAV900 KB DOWNLOAD

                                Sweeping

                                France NFC 48-265

                                  WAV1.1 MB DOWNLOAD

                                  Sweeping

                                  (medium) UK BS 5839-1

                                    WAV980 KB DOWNLOAD

                                    Sweeping

                                    (fast)

                                      WAV940 KB DOWNLOAD

                                      Sweeping

                                      (fast) UK BS 5839-1

                                        WAV1.0 MB DOWNLOAD

                                        Sweeping

                                          WAV1.1 MB DOWNLOAD

                                          Sweeping

                                            WAV800 KB DOWNLOAD

                                            Sweeping

                                            IMO 3d, Germany KTA3901 (evacuation Alarm)

                                              WAV890 KB DOWNLOAD

                                              Sweeping

                                                WAV1.1 MB DOWNLOAD

                                                Sweeping

                                                Finland (general alarm)

                                                  WAV3.1 MB DOWNLOAD

                                                  Continuous tone

                                                    WAV880 KB DOWNLOAD

                                                    Continuous tone

                                                      WAV880 KB DOWNLOAD

                                                      Continuous tone

                                                      Finland (all-clear signal)

                                                        WAV850 KB DOWNLOAD

                                                        Continuous tone

                                                        PFEER gasalarm

                                                          WAV1.0 MB DOWNLOAD

                                                          Continuous tone

                                                            WAV1.0 MB DOWNLOAD

                                                            Continuous tone

                                                            UK BS5839-1

                                                              WAV1.0 MB DOWNLOAD

                                                              Continuous tone

                                                                WAV1000 KB DOWNLOAD

                                                                Continuous tone

                                                                  WAV990 KB DOWNLOAD

                                                                  Continuous tone

                                                                    WAV990 KB DOWNLOAD

                                                                    Continuous tone

                                                                      WAV980 KB DOWNLOAD

                                                                      Continuous tone

                                                                      Sweden SS031711 (all-clear signal)

                                                                        WAV980 KB DOWNLOAD

                                                                        Continuous tone

                                                                          WAV980 KB DOWNLOAD

                                                                          Continuous tone

                                                                          Germany KTS3901 (all-clear signal)

                                                                            WAV890 KB DOWNLOAD

                                                                            Continuous tone

                                                                              WAV880 KB DOWNLOAD

                                                                              Continuous tone

                                                                                WAV880 KB DOWNLOAD

                                                                                Continuous tone

                                                                                  WAV950 KB DOWNLOAD

                                                                                  Interrupted tone

                                                                                    WAV890 KB DOWNLOAD

                                                                                    Interrupted tone

                                                                                    PFEER (general alarm) UK BS5839-1 (back-up alarm)

                                                                                      WAV940 KB DOWNLOAD

                                                                                      Interrupted tone

                                                                                      PFEER (general alarm)

                                                                                        WAV860 KB DOWNLOAD

                                                                                        Interrupted tone

                                                                                          WAV880 KB DOWNLOAD

                                                                                          Interrupted tone

                                                                                            WAV870 KB DOWNLOAD

                                                                                            Interrupted tone

                                                                                              WAV930 KB DOWNLOAD

                                                                                              Interrupted tone

                                                                                                WAV890 KB DOWNLOAD

                                                                                                Interrupted tone

                                                                                                (fast), horn

                                                                                                  WAV1.1 MB DOWNLOAD

                                                                                                  Interrupted tone

                                                                                                    WAV880 KB DOWNLOAD

                                                                                                    Interrupted tone

                                                                                                    Sweden SS031711 (emergency signal)

                                                                                                      WAV890 KB DOWNLOAD

                                                                                                      Interrupted tone

                                                                                                      (industrial alarm) Germany

                                                                                                        WAV910 KB DOWNLOAD

                                                                                                        Interrupted tone

                                                                                                        Sweden SS031711 (important message (pre-mess))

                                                                                                          WAV2.3 MB DOWNLOAD

                                                                                                          Interrupted tone

                                                                                                          Sweden SS031711 (local warning)

                                                                                                            WAV1.1 MB DOWNLOAD

                                                                                                            Interrupted tone

                                                                                                            Sweden SS031711 (air raid warning)

                                                                                                              WAV940 KB DOWNLOAD

                                                                                                              Interrupted tone

                                                                                                              Sweden SS031711 (emergency signal)

                                                                                                                WAV900 KB DOWNLOAD

                                                                                                                Interrupted tone

                                                                                                                Germany KTA3901 (evacuation alarm)

                                                                                                                  WAV950 KB DOWNLOAD

                                                                                                                  Interrupted tone

                                                                                                                  Australia AS2220, AS1610, AS1670

                                                                                                                    WAV870 KB DOWNLOAD

                                                                                                                    Interrupted tone

                                                                                                                    (fast variable) bell

                                                                                                                      WAV970 KB DOWNLOAD

                                                                                                                      Interrupted tone

                                                                                                                      ISO 8201 (emergency evacuation signal), USA (evacuation alarm)

                                                                                                                        WAV960 KB DOWNLOAD

                                                                                                                        Interrupted tone

                                                                                                                        ISO 8201 (emergency evacuation signal)

                                                                                                                          WAV990 KB DOWNLOAD

                                                                                                                          Interrupted tone

                                                                                                                          ISO 8201 (emergency evacuation signal) sweeping

                                                                                                                            WAV990 KB DOWNLOAD

                                                                                                                            Interrupted tone

                                                                                                                            IMO (telephone call)

                                                                                                                              WAV1.0 MB DOWNLOAD

                                                                                                                              Interrupted tone

                                                                                                                              IMO (leave ship)

                                                                                                                                WAV1.0 MB DOWNLOAD

                                                                                                                                Interrupted tone

                                                                                                                                IMO SOLAS III/50 + SOLAS III/6.4 (general alarm)

                                                                                                                                  WAV7.9 MB DOWNLOAD

                                                                                                                                  Alternating tone

                                                                                                                                    WAV890 KB DOWNLOAD

                                                                                                                                    Alternating tone

                                                                                                                                      WAV930 KB DOWNLOAD

                                                                                                                                      Alternating tone

                                                                                                                                      Singapore

                                                                                                                                        WAV890 KB DOWNLOAD

                                                                                                                                        Alternating tone

                                                                                                                                          WAV890 KB DOWNLOAD

                                                                                                                                          Alternating tone

                                                                                                                                            WAV930 KB DOWNLOAD

                                                                                                                                            Alternating tone

                                                                                                                                            UK BS58391-1 (fire alarm)

                                                                                                                                              WAV980 KB DOWNLOAD

                                                                                                                                              Alternating tone

                                                                                                                                              UK BS5839-1 (fire alarm, railway crossing)

                                                                                                                                                WAV1.1 MB DOWNLOAD

                                                                                                                                                Alternating tone

                                                                                                                                                İngiltere BS5839-1 (yangın alarmı, artan aciliyet - demiryolu geçidi)

                                                                                                                                                  WAV930 KB İNDİR

                                                                                                                                                  Alternatif ton

                                                                                                                                                    WAV980 KB İNDİR

                                                                                                                                                    Alternatif ton

                                                                                                                                                    endüstriyel alarm Almanya

                                                                                                                                                      WAV950 KB İNDİR

                                                                                                                                                      Alternatif ton

                                                                                                                                                        WAV890 KB İNDİR

                                                                                                                                                        Alternatif ton

                                                                                                                                                        Fransa NFS 32-001 (yangın alarmı)

                                                                                                                                                          WAV1.0 MB İNDİR

                                                                                                                                                          Alternatif ton

                                                                                                                                                          İsveç SS031711

                                                                                                                                                            WAV890 KB İNDİR

                                                                                                                                                            Alternatif ton

                                                                                                                                                            İsveç SS031711

                                                                                                                                                              WAV890 KB İNDİR

                                                                                                                                                              Alternatif ton

                                                                                                                                                              (iki tonlu zil)

                                                                                                                                                                WAV890 KB İNDİR

                                                                                                                                                                Ürün Avantajları

                                                                                                                                                                1. 1

                                                                                                                                                                  Elektromanyetik ses kapsülü teknolojisi

                                                                                                                                                                  Akustik sinyal, yüksek etkili alarm için duvarların ve kapıların mükemmel ses penetrasyonu için düşük frekanslı yan bantların bir payını içerir.

                                                                                                                                                                2. 2

                                                                                                                                                                  Akıllı kurulum

                                                                                                                                                                  Kaçak 3 elle montajı önlemek için elektrik kutusu taban kutusunda yapılır. Teller, sıkışma ve hata potansiyelinin ortadan kalktığı yerlerde güvenli bir şekilde yönlendirilir.

                                                                                                                                                                3. 3

                                                                                                                                                                  Yüksek kaliteli bileşenler

                                                                                                                                                                  8 milyon flaşdan sonra bile% 70 ışık emisyonu ile uzun ömürlülük sağlanır.

                                                                                                                                                                4. 4

                                                                                                                                                                  Esnek montaj seçenekleri

                                                                                                                                                                  Entegre delik şablonu, dünya çapında birçok yaygın elektrikli çalışma kutusuna uyum sağlar. Muhafazalara dik, tavandan aşağıya veya duvarlara dikey olarak monte edilir.
